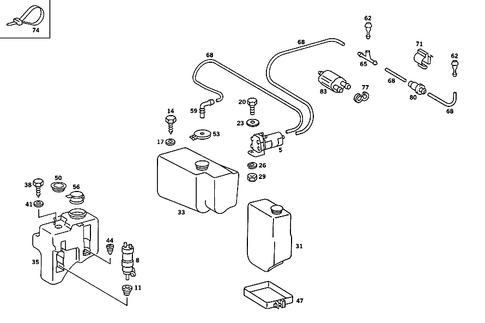

Windshield Washer for 1985 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
8
$82.65
11
Grommet
Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS
042 016317
045 024726
046 002951
$8.44
$8.44
11
Grommet Mercedes-Benz
Mercedes-Benz Description: From pump into reservoir. Pump to reservoir, connector. From pump to reservoir. Headlamp cleaning system pump in reservoir. Windshield washer.
$9.20
$9.20
35
Container Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS NEW EQUIPMENT 9/85
Description: Windshield washer.
$186.20
$186.20
38
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Air/water duct to cross member. 4,8x16. Covering to engine hood. 4,8x16.
$7.23
$7.23
50
Stopper Washer Mercedes-Benz
Mercedes-Benz Description: Side member, outside bottom. 32 mm. Door hinge. 32 mm. Left. 32 MM. Paint run-off hole in main floor. 32 mm. Below emergency seat, right. 32 mm. Hole for liquid level indicator in tank. 32 mm.
$7.13
$7.13
56
Closure Mercedes-Benz
Mercedes-Benz Description: Small cover not heated. Pane washer heated, clipped to 210 869 03 08. Heated windshield washer reservoir to 210 869 03 08.
$12.75
$12.75
56
$13.50
62
Nozzle Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
022 006049
024 024195
026 000383
042 005038
043 013985
044 051274
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS,SEE FOOTN.807
UP TO CHASSIS NEW EQUIPMENT 9/85
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS,SEE FOOTN.807
UP TO CHASSIS NEW EQUIPMENT 9/85
62
Nozzle Mercedes-Benz
Mercedes-Benz Notes: ONLY REPLACEABLE BY PAIRS
UP TO CHASSIS 022 006048 023 012946 024 024194 026 000382 042 005037 043 013984 044 051273
UP TO CHASSIS 022 006048 023 012946 024 024194 026 000382 042 005037 043 013984 044 051273
65
T-Type Distr Fitting Mercedes-Benz
Mercedes-Benz Notes: UP TO CHASSIS
022 007603
023 013686
024 028460
026 001253
042 006801
043 014850
044 058551
Description: Nozzle at engine hood,left. Windshield washer. Headlamp wiper/washer.
$15.38
$15.38
68
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Dia., 7.5x4.5 mm. 1000-mm long from water container to nozzle order by the meter. Pressure hose from liquid tank to nozzle order by the meter. (pressure hose), 2,600-mm long (from water tank to nozzle) order by the meter. 38 mm.
68
Washer Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Dia., 8.2x4.6 mm. 4.6x1.8 mm. Antenna water drain 120 mm. 4.6x1.8 mm. 1180 mm. 4.6x1.8 mm. Antenna water drain 180 mm. 4.6x1.8 mm. Windshield washer. 4.6x1.8 mm. From connector to additional reservoir 250 mm. 4.6x1.8 mm. From pump to check valve, not heated. 4.6x1.8 mm. Headlamp wiper/washer. 4.6x1.8 mm. From nozzle to check valve. 4.6x1.8 mm.
$16.88
$16.88
77
Clamp Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
022 007604
023 013687
024 028461
026 001254
042 006802
043 014851
044 058552
83
Check Valve Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
022 007604
023 013687
024 028461
026 001254
042 006802
043 014851
044 058552
Description: Engine hood bracket,rear. At hose to left and right nozzles. (check valve),windshield washer. Headlamp wiper/washer.
$43.50
$43.50
