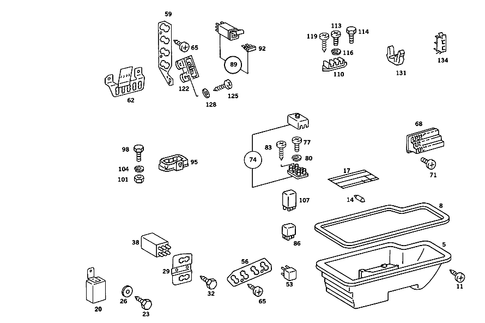

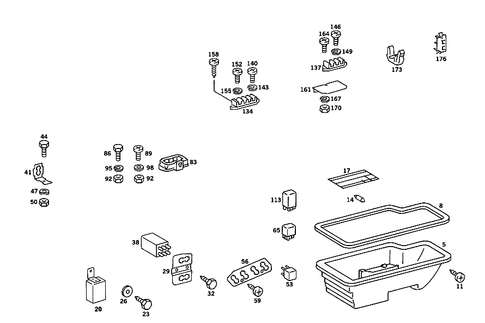

Fuse Box and Relay for 1985 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
11
$4.20
20
Relay
Mercedes-Benz
Mercedes-Benz Description: Heated-rear-window-pane time-lag relay. (time relay) heated windshield.
$171.10
$171.10
23
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
$5.70
$5.70
29
Holder Mercedes-Benz
Mercedes-Benz Description: Wiper pulse sender unit. Declutching-start/back-up-light switch plug connection. Tail lamp cable harness plugconnection.
44
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: LEFT GRAB HANDLE MOUNTING
Diameter: 5mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
Diameter: 5mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
65
$159.50
83
Holder Mercedes-Benz
Mercedes-Benz Description: Electronic control box. Fuel pump relay. Relay to left wheel arch panel. Control unit.
$8.40
$8.40
86
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M 5x20. Electronic control box. Heat exchanger pipes. Left lateral support to body-in-white. Window regulator rails and retaining rails to glass panes. Headlamp to fender. Bolt and washer assembly, wheel arch, left, bumper, rear. Bracket to wheel arch panel.
$10.00
$10.00
89
Screw Mercedes-Benz
Mercedes-Benz Description: Bracket to whelhouse flange. Bracket to wheelhouse. Ground cable to rear pillar. Bracket to antenna.
$7.23
$7.23
134
143
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
$4.20
$4.20
146
$7.13
164
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Edging to door lock. M4X16
Diameter: 4mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Surround at door lock, left. Fastening control moudle, left. Left front frame. Relay unit. Mounting stop. Mounting plate to center rear load compartment floor. Door lock housing.
Diameter: 4mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Surround at door lock, left. Fastening control moudle, left. Left front frame. Relay unit. Mounting stop. Mounting plate to center rear load compartment floor. Door lock housing.
$5.23
$5.23
173
Line Connector Mercedes-Benz
Mercedes-Benz Description: Main cable harness to heating. Heated rear window pane cable. Windshield. Rear window pane connecting cable to cable harness in rear panel door. Terminal "58 d". Lighting of heater case operating unit. Heater case,left. Terminal "58d".
176
Line Connector Mercedes-Benz
Mercedes-Benz Description: Electric cable regulator cable. Stop-light/speed signal. Motor connection,left and right front doors. Bipolar. At bracket. To floor panel in legroom. Cable harness to front door. Electric cable to rear door interior plate. Terminal "58d".
No.
Part # / Description / Price
Price
17
17
74
Fuse Box Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR '81
Description: Electric rear seat adjustment. Bipolar. On fire wall. 8 a. Headlamp wiper/washer. Antitheft alarm system. 2-pole.
86
$159.50
92
Securing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FROM MODEL YEAR'82
FROM MODEL YEAR'82
Description: To 201 540 08 45. 10a.
107
$347.80
107
Relay Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR '81
Description: Fuel pump cut-off see fig. No.: 520.
107
Relay Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'82
UP TO END OF MODEL YEAR'82
UP TO END OF MODEL YEAR'82
Description: Fuel pump cut-off.
