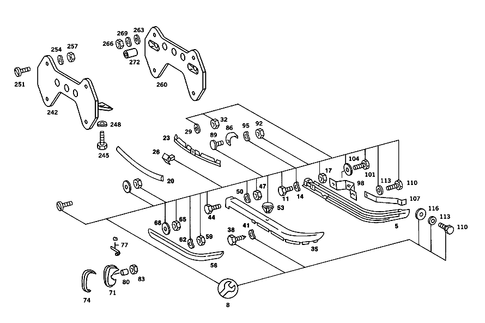

Front Bumper for 1985 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
N/A
Screw
Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: License plate base to filler neck flap. License plate moulding and license plate to bumper and to body.
11
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
$8.08
$8.08
14
Spring Washer Mercedes-Benz
Mercedes-Benz Description: Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.
$4.73
$4.73
17
Wiper Arm Nut Mercedes-Benz
Mercedes-Benz Description: Master cylinder to brake booster. Rear bumper to rear body panel cross member. Electric cable to alternator. Pedal assembly to fire wall. Front bumper to cross member. Armrest to backrest. Bracket to bumper. Left stiffening to right stiffening. On front door,bottom.
$8.46
$8.46
23
Retaining Rail Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
023 008964
024 004277
043 010984
044 015234
Description: Covering to front bumper.
35
Bumper Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
022 000730
023 010008
024 008419
042 000096
043 011674
044 022301
Description: Right.
35
Bumper Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
022 000730
023 010008
024 008419
042 000096
043 011674
044 022301
Description: Left.
38
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
$5.70
$5.70
53
Grommet Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
023 008926
024 004130
043 010969
044 015083
Description: To plug the holes used for headlamp washer. To 123 880 09 70.
$4.20
$4.20
74
Screw Mercedes-Benz
Mercedes-Benz Description: Left and right ornamental covers to central ornamental cover. Bracket to bumper. Left bumper face bar to right bumper face bar. Stiffening to front bumper. Covering to front bumper. Energy-absorbing unit and mounting to rear bumper.
$6.80
$6.80
86
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Fastening, spare wheel well. M10X20
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Hinge to door wing. Engine rear support to floor. Cover to axle housing.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Hinge to door wing. Engine rear support to floor. Cover to axle housing.
$8.50
$8.50
89
Washer Mercedes-Benz
Mercedes-Benz Description: FRONT BUMPER TO CROSS MEMBERDiameter: 10,5mmStrength / hardness class: 140 HVInside diameter: 10,5mmOutside diameter: 30mmMaterial thickness: 2,5mm. REAR BUMPER TO REAR BODY PANEL CROSS MEMBERDiameter: 10,5mmStrength / hardness class: 140 HVInside diameter ...
$9.60
$9.60
98
Washer Mercedes-Benz
Mercedes-Benz Description: Refrigerant compressor to support. Bearing cup to bearing bracket.
$6.80
$6.80
110
Screw Mercedes-Benz
Mercedes-Benz Description: Reinforcement to support. Ground cable to frame side member. Torsion bar mounting. Bracket with license plate to front bumper.
182
Securing Mercedes-Benz
Mercedes-Benz Description: Mounting console mount. Lighting unit to lateral stiffening. Bracket to bracket.
$6.80
$6.80
185
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Housing to instrument panel 4,8x19. Instrument panel to cross member,top 4,8x19. Lighting unit to front fender. Spoiler to panelling between front fenders. Instrument panel to cowl b 4.8x19. Instrument panel,on cross member, bottom,co-driver's side. Partition panel to wheelhouse. Covering to instrument panel,bottom.
No.
Part # / Description / Price
Price
122
Adhesive Tape Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: 2790 mm. Between bumper face bar central part and moulding.
128
Screw Mercedes-Benz
Mercedes-Benz Description: Mount, step with mounting console
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. RETAINER TO CENTRAL PART
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. RETAINER TO CENTRAL PART
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
$7.23
$7.23
143
146
Screw Mercedes-Benz
Mercedes-Benz Description: Bracket to whelhouse flange. Bracket to wheelhouse. Ground cable to rear pillar. Bracket to antenna.
$7.23
$7.23
149
Intermediate Layer Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Between bumper face bar central part and moulding 1570 mm. Rear central 1530 mm. 1610 mm.
182
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
$8.08
$8.08
188
Retaining Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Energy-absorbing unit to central part.
197
$5.15
230
$91.35
272
Spacer Roller Mercedes-Benz
Mercedes-Benz Description: Front license plate to plate. Rear license plate to rear body panel.
$5.70
$5.70
