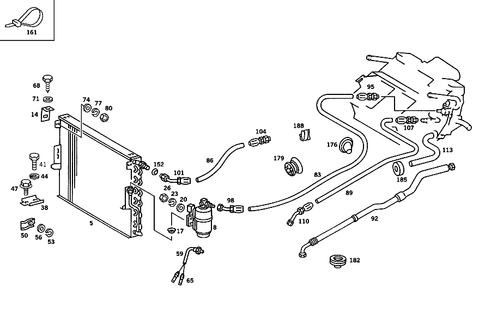

Refrigerant Line Arrangement for 1985 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
11
Reservoir
Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS:
024,025,044 UNTIL PRODUCTION STOP
045 011045
29
Collar Sleeve Mercedes-Benz
Mercedes-Benz Description: Gearing to bracket. Partition-panel-to-compressor refrigerant line to wheelhouse. Pipe line to cross member. Condenser to stiffening and to front cross member. Line to fire wall.
35
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Ignition coil to bracket. Transistorized ignition switchgear to wheelhouse panel.
35
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Light unit on reinforcement,front, bottom 4.8x19 mm. 4.8x19. Lighting unit to front fender. 4.8x19.
41
Screw Mercedes-Benz
Mercedes-Benz Description: M5x12. Bracket to auxiliary fan. Loudspeaker. Sliding angle to sliding roof plate. Starting cable to oil dipstick guide tube. Bracket to antenna. Safety hook to engine hood. Operating unit to instrument panel. Pump to bracket.
47
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Additional blower to additional blower. Auxiliary fan to strut. Oil cooler.
59
Controller Mercedes-Benz
Mercedes-Benz Description: Thermostat to liquid tank. Temperature regulator at fluid reservoir.
$88.45
$88.45
83
Hose Mercedes-Benz
Mercedes-Benz Description: Black 2700mm. 3500 mm. N.w. 8, 5250 mm long. I.d.,8mm;black;3500mm. From liquid tank to evaporator.
98
Connector Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: 3/8", 150 grad. 3/4" 150 deg i.d.6 with union nut.
107
Hose Connection Mercedes-Benz
Mercedes-Benz Description: 7/8", 180 grad. 7/8in.;180 degs.;nominal width,13mm. 7/8" 180 deg i.d.13 with union nut. 7/8",180 degrees;to 13-mm-i.d.hose.
110
Hose Connection Mercedes-Benz
Mercedes-Benz Description: 7/8", 135 grad. 7/8in.;135 degs.;nominal width,13mm. 7/8" 135 deg i.d. 13 with union nut. Nw 13 7/8" w 135 gr.
137
143
Grommet Mercedes-Benz
Mercedes-Benz Description: From expansion valve to compressor. Return line thru fire wall. Feed line to fire wall. For fuel hose through wall, spare wheel recess. For starter cable through partition wall. (starter cable through pedal floor). (to seal vacuum connection at ate booster brake). Hose thru fire wall.
149
Seal Mercedes-Benz
Mercedes-Benz Description: 7/8". Evaporator-to-compressor refrigerant line thru fire wall.
$8.80
$8.80
161
$11.60
167
Clamp Mercedes-Benz
Mercedes-Benz Description: Evaporator-to-compressor refrigerant line. From evaporator to compressor line.
170
Screw Mercedes-Benz
Mercedes-Benz Description: Wiper motor to inside central part below windshield. M6 x 20. Housing to fire wall. Window regulator to rear side part. Evaporator-to-compressor refrigerant line. Lock to tail central part. Pipe line to cross member. From evaporator to compressor line. Pressure converter to bracket.
173
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
$8.50
$8.50
176
Rubber Grommet Mercedes-Benz
Mercedes-Benz Description: Water drain, front. Liquid-tank-to-evaporator hose thru fire wall.
185
Ring Mercedes-Benz
Mercedes-Benz Description: Evaporator-to-pipe-line hose. Hood support. Feed line. From engine to heating water cock to 116 831 03 94. From expansion valve to compressor.
$18.75
$18.75
