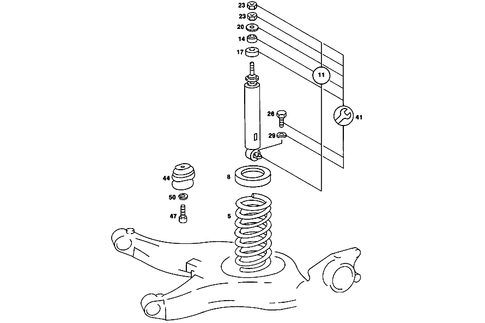

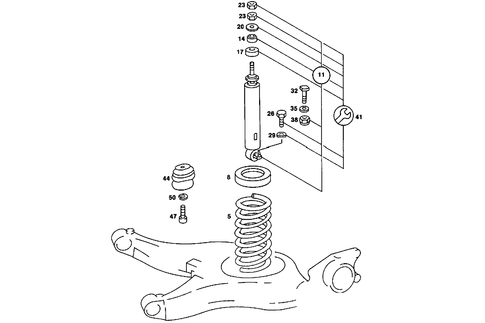

Springs and Suspension, Rear for 1985 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
8
Rubber Bushing
Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 2 (14 mm). With spring color code in red 14 mm;1220-1250 kg,1286-1327 kg.
$108.75
$108.75
8
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 1 (9.5 mm). With spring color code in red 9.5 mm;1185-1220 kg.
$55.10
$55.10
8
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 3 (19 mm). With spring color code in red 19 mm;1250-1286 kg,1327-1359 kg 1496-1540 kg.
$50.75
$50.75
14
Rubber Ring Mercedes-Benz
Mercedes-Benz Description: Shock absorber to frame. Hydropneumatic spring leg to frame.
$9.20
$9.20
20
Window Mercedes-Benz
Mercedes-Benz Description: Shock absorber to frame. Bumper to body. Hydropneumatic spring leg to frame. Shock absorber to rear axle.
$8.80
$8.80
23
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
$8.80
$8.80
32
Screw Mercedes-Benz
Mercedes-Benz Description: Shock absorber to rear axle. Hydropneumatic spring leg to rear axle.
35
Window Mercedes-Benz
Mercedes-Benz Description: Shock absorber to rear axle. Hydropneumatic spring leg to rear axle.
47
Cap Screw Mercedes-Benz
Mercedes-Benz Description: Stop buffer to frame. M8X20
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Pressure line to rotary actuator. Bracket to fire wall. Bracket on spring link m 8x20. Bracket to support. Line to torsion bar bearing, front left. Clamp to oil pan. Bracket on spring link m8 x 20. Plate to spring control arm.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Pressure line to rotary actuator. Bracket to fire wall. Bracket on spring link m 8x20. Bracket to support. Line to torsion bar bearing, front left. Clamp to oil pan. Bracket on spring link m8 x 20. Plate to spring control arm.
$10.40
$10.40
No.
Part # / Description / Price
Price
26
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M10X25
Diameter: 10mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Console mounting, left. Mount to body. Protective plate to frame m 10x25. Shock absorber to transverse control arm. To 001 542 63 20. Hydropneumatic spring leg to rear axle. Shock absorber to rear axle.
Diameter: 10mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Console mounting, left. Mount to body. Protective plate to frame m 10x25. Shock absorber to transverse control arm. To 001 542 63 20. Hydropneumatic spring leg to rear axle. Shock absorber to rear axle.
$9.60
$9.60
