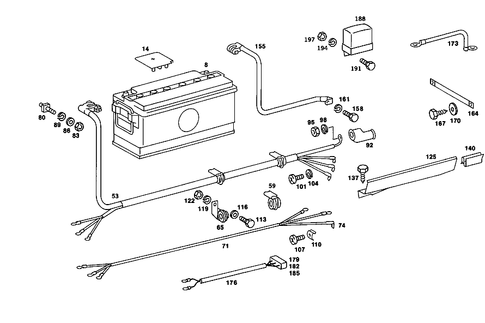

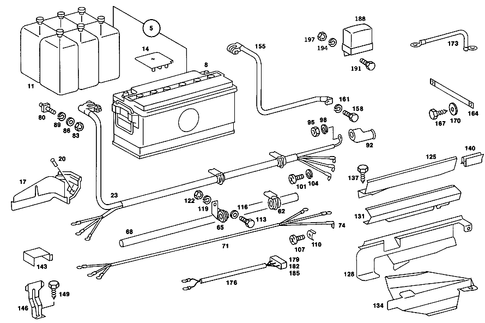

Battery, Starter/Alternator Cable for 1985 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
11
Battery Acid
Mercedes-Benz
Mercedes-Benz Description: To 001 541 79 01. For uncharged battery 72 ah, 74 ah. 66 ah.
14
Protective Cap Mercedes-Benz
Mercedes-Benz Description: Positive pole. Terminal post cap. Pole cover cap. Pole, starter and on-board ele. Sys. Battery.
$10.80
$10.80
20
Expansion Rivet Mercedes-Benz
Mercedes-Benz Description: Antenna mounting to bumper. Lower panelling to upper panelling. Panelling to rear panel door. Bracket to battery frame. Support on side skirt.
23
Positive Cable Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS,DELIVER ADDITIONALLY 1X 000 159 05 40:
042 A 010802
045 A 010680
046 A 010659
Description: From battery to starting motor.
23
Positive Cable Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS,DELIVER ADDITIONALLY 1X 000 159 05 40:
042 A 010802
045 A 010680
046 A 010659
Description: From battery to starting motor.
68
Insulating Hose Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Over starting cable and main cable harness.
80
$19.50
95
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
$7.65
$7.65
101
Screw Mercedes-Benz
Mercedes-Benz Description: M5X6
Diameter: 5mm
Strength / hardness class: 4.8
Thread code letter: M
Thread pitch: 1mm. Cable to starting motor,terminals 50 and 15a. Main cable harness to heater-plug starting switch. Bracket mounting. Cd changer. Control module mounting.
Diameter: 5mm
Strength / hardness class: 4.8
Thread code letter: M
Thread pitch: 1mm. Cable to starting motor,terminals 50 and 15a. Main cable harness to heater-plug starting switch. Bracket mounting. Cd changer. Control module mounting.
107
Screw Mercedes-Benz
Mercedes-Benz Description: Cd changer to bracket. Mounting at console. Control module mounting.
$4.03
$4.03
110
Mounting Bow Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Cable to starting motor,terminals 50 and 15a.
113
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Engine hood upper catch to engine hood. Flap to hinge m 6x10.
$7.23
$7.23
137
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Bracket to cooling water expansion tank bracketdiameter: 4,2mmthread code letter: r. Protective plate to side memberdiameter: 4,2mmthread code letter: r. BRACKET MOUNTINGDiameter: 4,2mmThread code letter: R. SOLENOID VALVE TO WHEELHOUSEDiameter: 4,2mmThrea ...
155
Line Mercedes-Benz
Mercedes-Benz Description: From battery to frame. From battery neg. Pole to ground. Pole to frame. Cable harness to cable connector.
158
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
$8.08
$8.08
182
$5.70
185
Receptacle Mercedes-Benz
Mercedes-Benz Description: 756. 1.0-2.5 mm2 ff6.3. Radio. 1.0-2.5 mm2 ff6.3. Engine hood. 1.0-2.5 mm2 ff6.3. Parking brake switch. 1.0-2.5 mm2 ff6.3.
2 This part contains hazardous materials. Extra shipping costs apply.
No.
Part # / Description / Price
Price
8
Battery 2 Mercedes-Benz
Mercedes-Benz Description: Filled. 12V/100AH. Cable harness mounting 12v/100 ah. 12v/100ah. Hybrid 100 ah. 12v/100ah.
32
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Steering column jacket tube to body. Master cylinder to pedal assembly. Brake power regulator to bracket. Bracket to engine. Cable to ignition coil. Fuel lines under rear seat. Hydraulic unit to bracket. Wiper motor to fire wall.
$24.05
$24.05
41
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Cable connector to frame side member. Bracket to housing.
44
Grommet Mercedes-Benz
Mercedes-Benz Description: Ground cable to battery shell,rear. Combination valve. Pressure line.
$17.14
$17.14
56
Electric Line Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS 045 A 010680 DELIVER ADDITIONALLY 1X 000 159 05 40
Description: From cable connector to starting motor.
83
Nut Mercedes-Benz
Mercedes-Benz Description: ELECTRONIC CABLE TO STARTING CABLE
Diameter: 6mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 10mm. POSITIVE CABLE TO BATTERY
Diameter: 6mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 10mm.
Diameter: 6mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 10mm. POSITIVE CABLE TO BATTERY
Diameter: 6mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 10mm.
155
2 This part contains hazardous materials. Extra shipping costs apply.
