Closed Fuel-Evaporation-Control System for 2012 Mercedes-Benz S400
No.
Part # / Description / Price
Price
10
Purge Valve
Mercedes-Benz
Mercedes-Benz Description: Regeneration valve. Evaporative emission control system. In engine compartment. To engine.
$147.90
$147.90

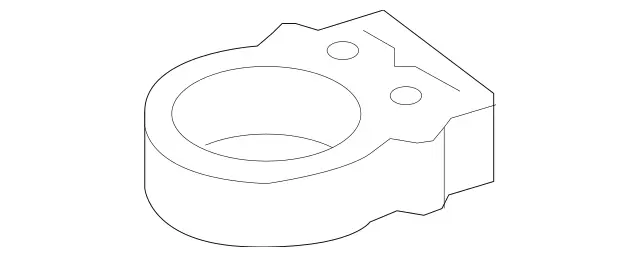

20
Holder Mercedes-Benz
Mercedes-Benz Description: PURGE VALVE AT BRACKET
Inside diameter: 33,5mm
Outside diameter: 39,5mm
Material thickness: 3mm.
Inside diameter: 33,5mm
Outside diameter: 39,5mm
Material thickness: 3mm.
$26.00
$26.00
45
Grommet Mercedes-Benz
Mercedes-Benz Description: Bracket of activated charcoal filter on wheelhouse. Inner trunk floor, left. To plug tapped hole m6. Roof member mounting.
50
Hose Mercedes-Benz
Mercedes-Benz Description: To bleed line. Regeneration line to engine. Between purge line and tube. Regeneration valve. Damper filter to purge valve. Purge valve to connecting point. Purge valve to purge line. Dashpot at purge line.
$23.40
$23.40
65
Line Bracket Mercedes-Benz
Mercedes-Benz Description: Feed line to purge line
Diameter: 9,5mm/8mm. For fuel and purge line
Diameter: 9,5mm/8mm. Fuel line to firewall
Diameter: 9,5mm/8mm.
Diameter: 9,5mm/8mm. For fuel and purge line
Diameter: 9,5mm/8mm. Fuel line to firewall
Diameter: 9,5mm/8mm.
$8.40
$8.40
80
Purge Line Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Between activated charcoal filter and regeneration valve.
100
Damping Container Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Regeneration line to regeneration valve.
$58.00
$58.00
110
Hose Mercedes-Benz
Mercedes-Benz Description: Fluid reservoir. Between tube and purge valve. From activated charcoal filter to regeneration valve. Regeneration line to distributor. Molded hose. Regeneration valve to intake pipe. At sender unit. Distributor to regeneration valve, right. Regeneration line to regeneration valve.
$16.88
$16.88
120
Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Cexpansion reservoir to activated charcoal filter. 13mm.
$15.75
$15.75

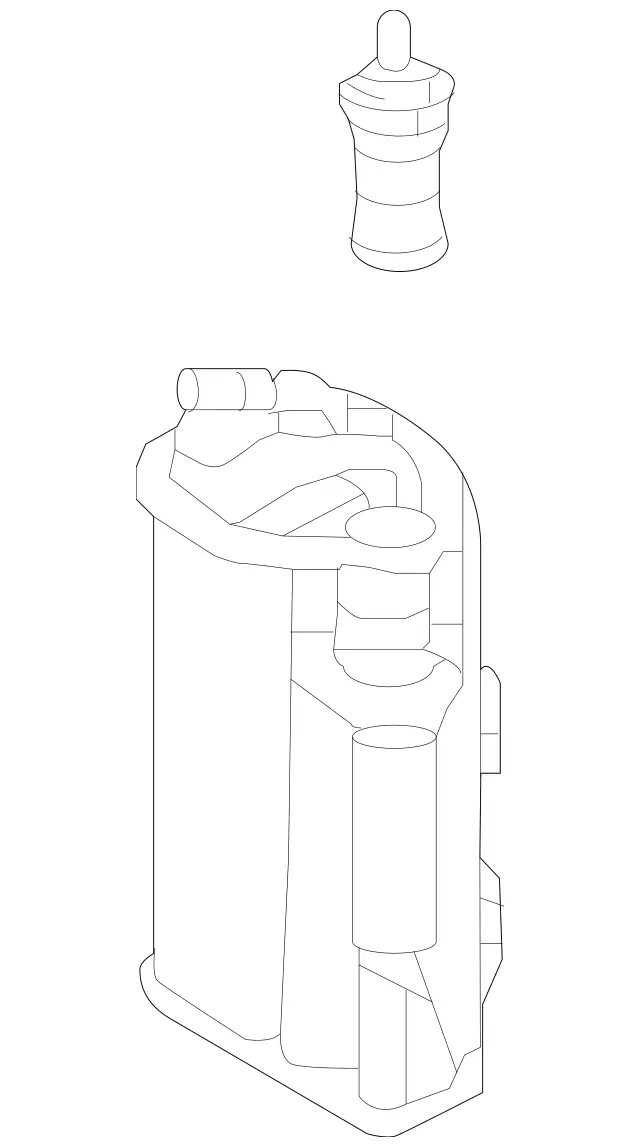

300
Activated Charcoal Filter Mercedes-Benz
Mercedes-Benz Description: In wheelhouse right rear. Regeneration line.
$120.35
$120.35
300
310
Hose Mercedes-Benz
Mercedes-Benz Description: FROM ACTIVATED CHARCOAL FILTER TO REGENERATION LINE
Inside diameter: 9,3mm
Outside diameter: 15,3mm
Material thickness: 3mm.
Inside diameter: 9,3mm
Outside diameter: 15,3mm
Material thickness: 3mm.
$26.98
$26.98
330
Bleed Line Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Carbon filter to fuel tank. Between tank and activated-carbon filter.
330
Line Mercedes-Benz
Mercedes-Benz Description: From tank to activated charcoal filter. Tank ventilation to activated charcoal filter.
335
Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Breather line to t-fitting. 25 mm. Breather line to compressed air valve. 25 mm. Activated charcoal filter to fuel filler neck. 25 mm. Hose to cutoff valve. 25 mm. From fuel tank to additional tank 25 - 26,3 mm. 25 mm. (pressure relief valve). 25 mm. Hose to activated charcoal filter. 25 mm.
$10.40
$10.40
340
Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Mounting of molded hose on purge line. Hose to breather line. Tank breather line. Return line from engine. Breather line to activated charcoal filter. Hose to purge line. Return hose.
$8.80
$8.80
355
Binder Mercedes-Benz
Mercedes-Benz Description: For weld stud T5. 4,6X155 MM. Insulation mounting. 4,6x155 mm. To line. 4,6x155 mm. Mounting material. 4,6X155 MM. Tank breather line. 4,6x155 mm. Line mounting. 4,6X155 MM. Return. 4,6X155 MM. Drain hose to body-in-white. 4,6X155 MM.
370
Hose Mercedes-Benz
Mercedes-Benz Description: DE-AERATION LINE. 415 MM
Inside diameter: 11,5mm
Outside diameter: 18,5mm
Material thickness: 3,5mm. BREATHER LINE TO ACTIVATED CHARCOAL FILTER. 415 MM
Inside diameter: 11,5mm
Outside diameter: 18,5mm
Material thickness: 3,5mm.
Inside diameter: 11,5mm
Outside diameter: 18,5mm
Material thickness: 3,5mm. BREATHER LINE TO ACTIVATED CHARCOAL FILTER. 415 MM
Inside diameter: 11,5mm
Outside diameter: 18,5mm
Material thickness: 3,5mm.
$23.08
$23.08
370
Hose Mercedes-Benz
Mercedes-Benz Description: DE-AERATION LINE
Inside diameter: 17mm
Outside diameter: 25mm
Material thickness: 4mm.
Inside diameter: 17mm
Outside diameter: 25mm
Material thickness: 4mm.
380
$8.40
420
Boot Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: In wheelhouse between breather pipes. Breather line to wheel arch.
500
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Shutoff valve adapter line. Activated charcoal filter shutoff valve.
$36.25
$36.25
500
Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Shutoff valve repair solution. Shutoff valve adapter line to a 000 470 71 93. Activated charcoal filter shutoff valve.
$31.90
$31.90
510
Cutoff Valve Mercedes-Benz
Mercedes-Benz Description: Shutoff valve activated-carbon filter. Valve insert. 3.0l 2008-12, 3.5l 2008-11. Evaporative emission control system. Activated charcoal filter shutoff valve.
$253.80
$253.80
600
Control Unit Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Tank leaktightness diagnostic equipment.
610
Diagn Dev , Tank Leakage Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: Tank leaktightness.
620
Exchange Diagnostic Device 1 Mercedes-Benz
Mercedes-Benz Description: Tank leaktightness. Activated charcoal filter. To control unit.
640
Pilot Bushing Mercedes-Benz
Mercedes-Benz Description: Diagnostic device mount. To holder. Diagnostic device to activated charcoal filter. Diagnostic unit at bracket. Pilot bushing, diagnostic device, leak tightness, fuel tank.
$22.91
$22.91
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
