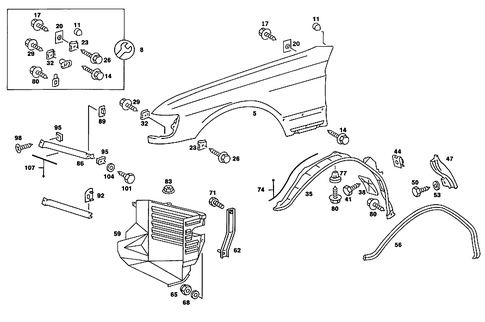

Front Fender for 1991 Mercedes-Benz 560SEL
No.
Part # / Description / Price
Price
8
Edging
Mercedes-Benz
Mercedes-Benz Description: Panelling to front fender. Garnish moulding to front door. Garnish moulding to front fender.
11
Buffer Mercedes-Benz
Mercedes-Benz Description: Front fender to front panel pillar. (rear body panel),bottom. At tail central piece,bottom. See fig. No.90.
14
Screw Mercedes-Benz
Mercedes-Benz Description: M6x18. Rear seat bench backrest to rear panel. Fender to body. Front fender to wheelhouse.
$6.65
$6.65
20
Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse. Front fender to front panel pillar. Bracket to heater case. Partition panel to side member and to front stiffening.
$8.08
$8.08
26
Socket Nut Mercedes-Benz
Mercedes-Benz Description: Handle to door. Left grab handle. Center panelling at door trim panel. Schraubpunkt srs plakete.
$12.00
$12.00
29
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
$5.25
$5.25
38
$171.10
38
59
Seal Mercedes-Benz
Mercedes-Benz Description: Partition panel,outside. Between partition panel & front fender 1375 mm. 1285 mm.
$33.35
$33.35
71
Nut Mercedes-Benz
Mercedes-Benz Description: Grip handle to front and rear doors. Grab handle to door. Bottom and top.
77
$6.18
86
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Housing to instrument panel 4,8x19. Instrument panel to cross member,top 4,8x19. Lighting unit to front fender. Spoiler to panelling between front fenders. Instrument panel to cowl b 4.8x19. Instrument panel,on cross member, bottom,co-driver's side. Partition panel to wheelhouse. Covering to instrument panel,bottom.
104
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to bracket at front lateral stiffening. 4.8x13. Panelling below lighting unit. 4.8x13. For covering. 4.8x13. Engine hood release cable to front panel,bottom. 4.8x13.
107
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
$5.70
$5.70
No.
Part # / Description / Price
Price
32
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
$5.70
$5.70
101
Securing Mercedes-Benz
Mercedes-Benz Description: Bracket mounting. Instrument panel to front-end assembly. Central partition panel to engine compartment partition panel. Fire extinguisher bracket. Receiver attachment,tv. Bracket to bracket. Door lining to interior plate.
$8.50
$8.50
No.
Part # / Description / Price
Price
5
Front Fender Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: With hole for additional blinker lamp, left.
5
Front Fender Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: With hole for additional blinker lamp, right.
