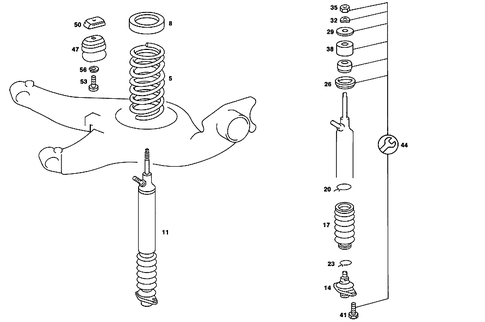

Rear Springs and Suspension Used with Self-Levelling Device for 1990 Mercedes-Benz 560SEL
No.
Part # / Description / Price
Price
5
Rear Spring
Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.039 24 PARTITION PANEL 11
HITCHING MECHANISM 7
COOL BOX 6
AUTOMOBILE TELEPHON 3
FONDSITZVERSTELLUNG ELEKTR. 4
REAR WINDOW ROLLER BLIND 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-25 115 324 27 04 115 325 23 44 115 325 24 44
.
26-34 123 324 06 04 115 325 22 44 115 325 23 44
35-41 123 324 06 04 115 325 23 44 115 325 24 44
.
42-49 123 324 36 04 115 325 22 44 115 325 23 44
50- 123 324 36 04 115 325 23 44 115 325 24 44
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/SELF LEVELLING DEVICE HARDER SPRING SUSPENSION CODE 485
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-29 123 324 27 04 115 325 22 44 115 325 23 44
30-36 123 324 27 04 115 325 23 44 115 325 24 44
37- 123 324 27 04 115 325 24 44
==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.039 24 PARTITION PANEL 11
HITCHING MECHANISM 7
COOL BOX 6
AUTOMOBILE TELEPHON 3
FONDSITZVERSTELLUNG ELEKTR. 4
REAR WINDOW ROLLER BLIND 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-25 115 324 27 04 115 325 23 44 115 325 24 44
.
26-34 123 324 06 04 115 325 22 44 115 325 23 44
35-41 123 324 06 04 115 325 23 44 115 325 24 44
.
42-49 123 324 36 04 115 325 22 44 115 325 23 44
50- 123 324 36 04 115 325 23 44 115 325 24 44
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/SELF LEVELLING DEVICE HARDER SPRING SUSPENSION CODE 485
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-29 123 324 27 04 115 325 22 44 115 325 23 44
30-36 123 324 27 04 115 325 23 44 115 325 24 44
37- 123 324 27 04 115 325 24 44
==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.039 24 PARTITION PANEL 11
HITCHING MECHANISM 7
COOL BOX 6
AUTOMOBILE TELEPHON 3
FONDSITZVERSTELLUNG ELEKTR. 4
REAR WINDOW ROLLER BLIND 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-25 115 324 27 04 115 325 23 44 115 325 24 44
.
26-34 123 324 06 04 115 325 22 44 115 325 23 44
35-41 123 324 06 04 115 325 23 44 115 325 24 44
.
42-49 123 324 36 04 115 325 22 44 115 325 23 44
50- 123 324 36 04 115 325 23 44 115 325 24 44
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/SELF LEVELLING DEVICE HARDER SPRING SUSPENSION CODE 485
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-29 123 324 27 04 115 325 22 44 115 325 23 44
30-36 123 324 27 04 115 325 23 44 115 325 24 44
37- 123 324 27 04 115 325 24 44
==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.039 24 PARTITION PANEL 11
HITCHING MECHANISM 7
COOL BOX 6
AUTOMOBILE TELEPHON 3
FONDSITZVERSTELLUNG ELEKTR. 4
REAR WINDOW ROLLER BLIND 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-25 115 324 27 04 115 325 23 44 115 325 24 44
.
26-34 123 324 06 04 115 325 22 44 115 325 23 44
35-41 123 324 06 04 115 325 23 44 115 325 24 44
.
42-49 123 324 36 04 115 325 22 44 115 325 23 44
50- 123 324 36 04 115 325 23 44 115 325 24 44
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/SELF LEVELLING DEVICE HARDER SPRING SUSPENSION CODE 485
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-29 123 324 27 04 115 325 22 44 115 325 23 44
30-36 123 324 27 04 115 325 23 44 115 325 24 44
37- 123 324 27 04 115 325 24 44
==============================================================================================================================
Description: As required.
$256.15
$256.15
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.039 24 PARTITION PANEL 11
HITCHING MECHANISM 7
COOL BOX 6
AUTOMOBILE TELEPHON 3
FONDSITZVERSTELLUNG ELEKTR. 4
REAR WINDOW ROLLER BLIND 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-25 115 324 27 04 115 325 23 44 115 325 24 44
.
26-34 123 324 06 04 115 325 22 44 115 325 23 44
35-41 123 324 06 04 115 325 23 44 115 325 24 44
.
42-49 123 324 36 04 115 325 22 44 115 325 23 44
50- 123 324 36 04 115 325 23 44 115 325 24 44
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/SELF LEVELLING DEVICE HARDER SPRING SUSPENSION CODE 485
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-29 123 324 27 04 115 325 22 44 115 325 23 44
30-36 123 324 27 04 115 325 23 44 115 325 24 44
37- 123 324 27 04 115 325 24 44
==============================================================================================================================
Description: As required.
8
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 2 (14 mm). With spring color code in red 14 mm;1220-1250 kg,1286-1327 kg.
$108.75
$108.75
8
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 3 (19 mm). With spring color code in red 19 mm;1250-1286 kg,1327-1359 kg 1496-1540 kg.
$50.75
$50.75
8
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 1 (9.5 mm). With spring color code in red 9.5 mm;1185-1220 kg.
$55.10
$55.10
14
Rubber Ring Mercedes-Benz
Mercedes-Benz Description: Shock absorber to frame. Hydropneumatic spring leg to frame.
$9.20
$9.20
20
$13.50
23
Window Mercedes-Benz
Mercedes-Benz Description: Shock absorber to frame. Bumper to body. Hydropneumatic spring leg to frame. Shock absorber to rear axle.
$8.80
$8.80
26
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
$8.80
$8.80
32
Screw Mercedes-Benz
Mercedes-Benz Description: Shock absorber to rear axle. Hydropneumatic spring leg to rear axle.
35
Window Mercedes-Benz
Mercedes-Benz Description: Shock absorber to rear axle. Hydropneumatic spring leg to rear axle.
38
Nut Mercedes-Benz
Mercedes-Benz Description: BRAKE BRACING TO CONTROL ARMDiameter: 10mmStrength / hardness class: 8Thread code letter: MThread pitch: 1,5mmWidth across flats: 17mm. STOP TO REAR AXLEDiameter: 10mmStrength / hardness class: 8Thread code letter: MThread pitch: 1,5mmWidth across flats: 1 ...
47
Cap Screw Mercedes-Benz
Mercedes-Benz Description: Stop buffer to frame. M8X20
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Pressure line to rotary actuator. Bracket to fire wall. Bracket on spring link m 8x20. Bracket to support. Line to torsion bar bearing, front left. Clamp to oil pan. Bracket on spring link m8 x 20. Plate to spring control arm.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Pressure line to rotary actuator. Bracket to fire wall. Bracket on spring link m 8x20. Bracket to support. Line to torsion bar bearing, front left. Clamp to oil pan. Bracket on spring link m8 x 20. Plate to spring control arm.
$10.40
$10.40
47
Cap Screw Mercedes-Benz
Mercedes-Benz Description: M8X30-10.9
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Steering coupling to steering shaft. Line to compressor. Stop buffer to frame. Plug connection, separation point.
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Steering coupling to steering shaft. Line to compressor. Stop buffer to frame. Plug connection, separation point.
$13.13
$13.13
No.
Part # / Description / Price
Price
41
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M10x25. Shock absorber to rear axle. Stiffening support to body side member. Reinforcement angle to side member. Intermediate bearing to frame floor unit. Hydropneumatic spring leg to rear axle. Protective plate to protective plate.
